New ISA/PC-104 Project
Go to RapidDriver Main Page

To create a new ISA or PC-104 RapidDriver project you must run the New Project wizard where you should select "Create new project for a legacy ISA device" at Step1:

isanew


Step 2 has nothing different with any other device type.

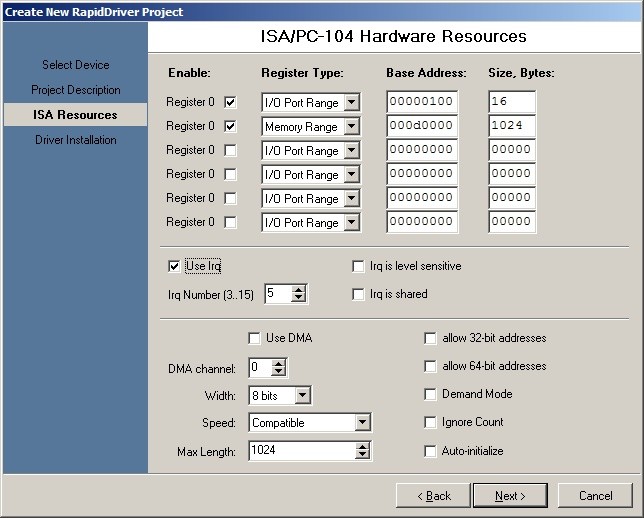

Step3: ISA Resources

isaresources


Here you should describe up to 6 port/memory ranges. Also you can define if your device utilizes Irq and/or DMA channel.

Step4: All the same as described above

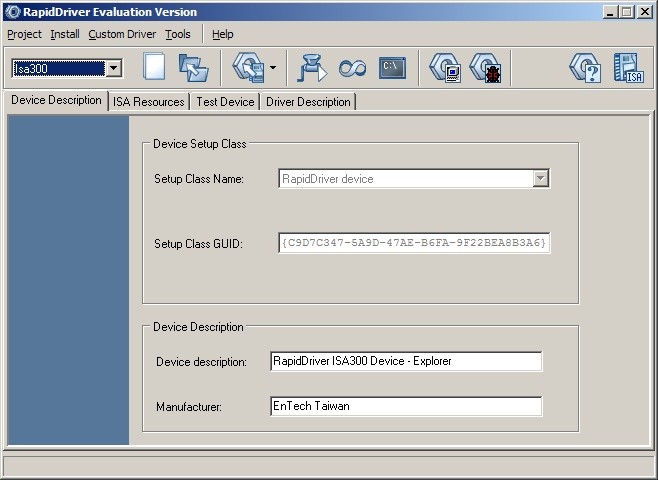

The ISA project window look like this (has one additional page):

isaproject

and contains three tab pages:

1. Device Description - enter the device installation information here

2. ISA Resources

3. Test Device

4, Driver Description (RapidDriver Source Builder only)
